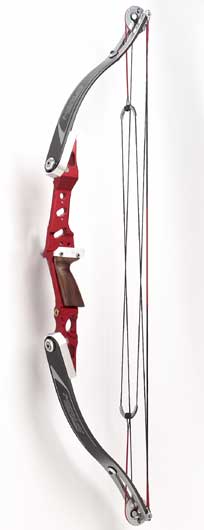

Legend S/R (1996 - 1999)
The classically designed Deflex riser has the optimum design for speed and accuracy, a truly forgiving bow to shoot. Speed is nothing without control.
The quality of this bow is of the highest standard, with its polished bright anodized finish and hardwood grip, built from the finest materials available, each bow is meticulously hand built, each limb is hand laid and matched to give you an edge on your competition. Axle Length --- 39"
Brace Height --- 8"(approx)
Mass Weight --- 3lb 9 oz
IBO Speed --- N/A
Cam Type --- 65% energy wheel
Limb Options --- SFC Glass
Draw Lengths --- 22-31
Draw Weights --- 30,40,50,60,70
|
Wheel Size (39") |
Draw Length Range |
String |
Internal |
Shoot Through |
Shoot Through |
|
|
|
|
Long |
Short |
1.75 |
22-24 |
49 |
42 |
65.5 |
9.5 |
1.75 |
23-25 |
49.5 |
42 |
65.5 |
9.5 |
2 |
24-26 |
51 |
42 |
65.5 |
9.5 |
2 |
25-27 |
51.5 |
42 |
65.5 |
9.5 |
2.25 |
26-28 |
52.5 |
42 |
65.5 |
9.5 |
2.25 |
27-29 |
53.5 |
42 |
65.5 |
9.5 |
2.5 |
28-30 |
55 |
42 |
65.5 |
9.5 |
2.5 |
29-31 |
55.5 |
42 |
65.5 |
9.5 |
|
 |
DRAW CHECK WHEEL
65% let off, positive stop energy wheel. The ultimate in smoothness of draw and forgiving shooting.
Unique built in wheel timing indicator and valley length adjuster.
4 wheel sizes cover an 10" draw length range. |
|
