Riser

The foundation of any great bow is the riser. We pulled out all the stops to make the X-Range risers something special.

An amalgamation of form and function, the XS & XT are a cut above the rest.

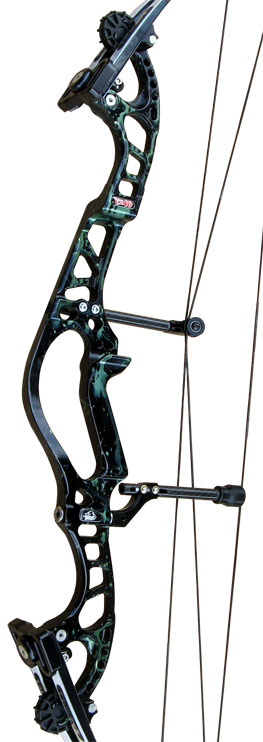

Precision machined to exact tolerances from high grade 6082 aluminium. The XT riser starts life as a 30 pound billet and is sculptured, polished and anodised before finishing up on a bow weighing less than 5lbs.

XT riser length = 27"
XS riser length = 22"

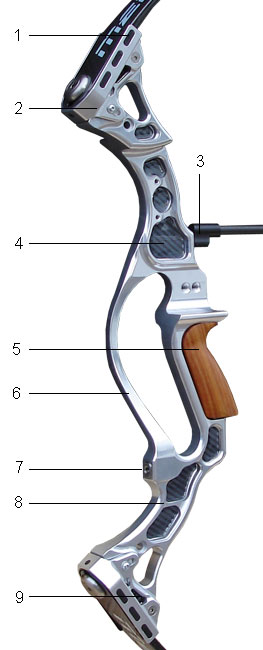

1	32 degree limb angle. The perfect combination of low recoil and bow feedback.
2	Lined and cushioned limb pockets for a snug, vibration reducing fit.
3	New, anti rotation cable guard mount eliminates the possibility of unwanted movement.
4	Removable crystal domed inserts. The ultimate in personal customisation. from subtle tones to to holograms, there's something to suit you.
5	Low profile hardwood grip with the throat placed near to the centre of the riser. This location offers improved aiming and a better balanced bow.
6	Stress equalising forward rib design updated and improved from our pioneering Omega bow of the 1990's.
7	Stainless steel stabiliser insert.
8	Our 'H-Section' machining method offers minimal weight while maximising strength and rigidity.
9	Integral limb pocket dampening.
